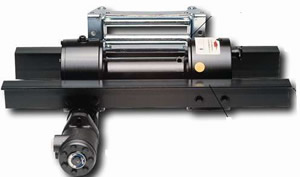

VIME JH-JZ 2300Kg (5000lb) 2700Kg (7000lb)
          3000Kg (6700lb) 3600Kg (8000lb)

H.D. Worm & gear hydraulic winch
Manual or air operated clutch
Motor fitting front or rear with 360° rotation
Low Profile drop in or surface frame mounting
Std. or H.D. Fairlead Wire rope tensioner

VIME EPH3600Kg (8,000lb)

Single stage H.D. Planetary winch
Automatic H.D. Safety brake in oil bath
H.D. 4-Way fairlead/roller guide - composite bearings
    to rollers, no greasing required
Manual or air clutch - Wire rope tensioner Mounting plate -     Overcentre valve options

    Max Wire Rope Capacity:

VIME EPH4500Kg (9,900lb)

Single stage H.D. Planetary winch
Automatic H.D. Safety brake in oil bath
H.D. 4-Way fairlead/roller guide - composite bearings to     rollers, no greasing required
Manual or air clutch - Wire rope tensioner Mounting plate -     Overcentre valve options

    Max Wire Rope Capacity:

VIME EPH5200 (11,450lb) EPH6000 (13,200lb)

Single stage H.D. Planetary gearbox
Automatic H.D. Safety brake in oil bath
H.D. 4-Way fairlead/roller guide - composite bearings
    to rollers, no greasing required.
Manual or air operated clutch
Overcentre valve to motor for extra safety
Wire rope tensioner and mtg. plate options

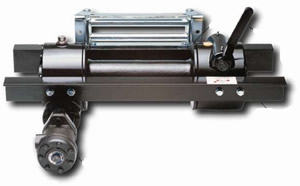

VIME RNH/RSH/RCH 4500Kg (9,900lb)
          5400Kg (11,880lb)

H.D. Worm and gear winch range
Standard or Compact Motor
Motor fitting front or rear with 360° rotation
Manual or air operated clutch
Medium or H.D. Fairlead option
Low profile drop in angle iron mounting
2 Drum options - Standard or Large Flanges

    Max Wire Rope Capacity:

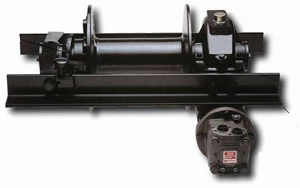

VIME TH6000Kg (11,880lb)

H.D., Heavyweight, Hydraulic Winch with large rope     capacity, more suitable for military applications and     H.D. Industrial use.
Manual clutch
Low profile drop in angle iron mounting
H.D. Fairlead option
    Max Wire Rope Capacity: 115M x 16mm

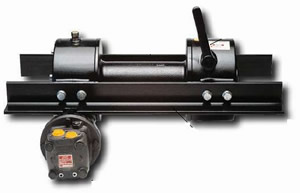

VIME MH6500Kg (14,300lb) MH8000Kg (17,700lb)

Rugged H.D. Worm and Gear Winch in oil bath
Compact motor design
Motor fitting front or rear with 360° rotation
Manual or air operated clutch
Low profile drop in angle iron mounting
H.D. Fairlead Wire rope tensioner options

    Max Wire Rope Capacity :

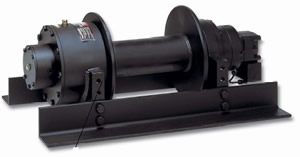

VIME EPH9500Kg (20,900lb)

2-Stage H.D. Planetary Hydraulic Winch
Air operated clutch
Automatic heavy duty multi-disc brake
Roller Fairlead & Cable Tensioner Options

    Max Wire Rope Capacity :

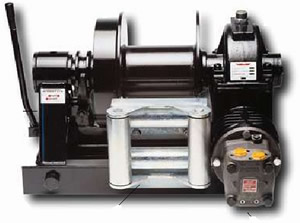

VIME WH12500Kg (27,500lb) WH15000Kg (33,000lb)

H.D. Worm and Gear Winch in oil bath
Manual or air operated clutch
Roller Fairlead & Cable Tensioner Options
2 Drum widths available - Standard & Long

    Max Wire Rope Capacity :

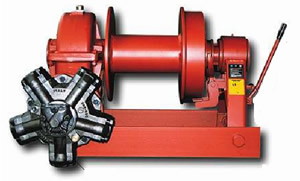

VIME NH20000Kg (44,000lb) PH30000Kg (66,000lb)

H.D. Worm and Gear Winch in oil bath
Manual or air operated clutch
Single or 2-speed gearbox Radial motor

    Max Wire Rope Capacity :

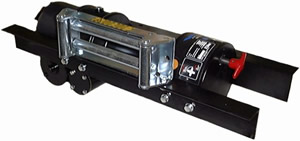

VIME JE RANGE (JEC/JEM/JEL) 2700Kg (7,000lb)
          3600Kg (8,000lb)

H.D. Worm and Gear Electric Winch
12V or 24V DC options
Gearbox front or rear mounted
3 Drum widths available
Integrally mounted solenoids
Socket for wanderlead
Cable Tensioner option
Low profile or surface frame mtg. options
Medium or H.D. Roller fairlead
Proof tested to 6.2 tonnes

    Max Wire Rope Capacity:

OTHER WINCHES

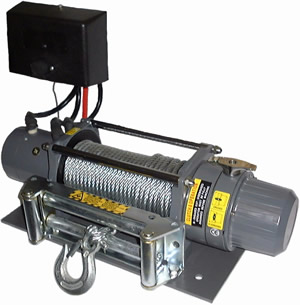

TROJAN 2730Kg (7,000lb) 4100Kg (9,000lb)

3 Stage Planetary Gear Electric Winches
12V or 24V DC Options
Remote mounting of solenoids (as shown) or with     solenoids mounted over winch barrel
Strong metal clutch handle
Automatic brake Wanderlead Operated
Radio control option
Flat mounting plate and fairlead options
Fast rewind - ideal for car movement/trailer operations
    Wire Rope Capacity: 24 - 38M x 8mm

1134Kg/1588Kg/2040Kg

Compact 12-24V DC Planetary Electric Winches
Integrated solenoid operation
12-24V DC c/w wanderlead control
    15M wire rope and integral 4-way roller guide
